First Time Using Syswin 3.1

Syswin is nice software for some who start learn PLC, you can follow this tutor step by step:

First step : Lets click Syswin for Activacation , this window will appear on your screen :

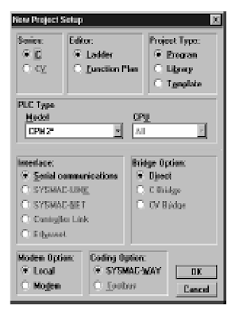

Step 2: Start with menu File New Project, this dialog box will appear:

Ceck the configuration just like example above ( cek program in project , cek ladder in Editor) and then click Ok

Modem option cek on local option , but if your PLCs in networking system via modem,you can cek modem option.

Step 3: Make sure that PLC on programming mode, (PLC has 3 mode :1. programming mode, 2. Monitoring Mode and 3. Run Mode) Now you can start drawing ladder diagram.

If you want to insert Network, just Click Insert Network and this dialog box will appear.
